CFexpress Type B vs UHS-II SD: Which Card Does Your Camera Need?

Choose CFexpress Type B only when your camera has a Type B slot and your exact shooting mode benefits from its higher throughput, faster buffer clearing or required VPG profile. Choose UHS-II SD when your camera uses an SD slot and its manual allows a V60 or V90 card for the codec, frame rate and bitrate you plan to record. A camera that shoots 8K does not automatically require CFexpress for every 8K mode, and a card labeled with a high peak speed is not automatically approved for sustained video. The decisive sequence is simple: slot type first, recording mode second, sustained-write requirement third, then capacity, reader and budget.

Quick verdictFor ordinary stills, compressed 4K and many hybrid workflows, UHS-II SD is often the practical value choice. For long RAW bursts, internal RAW video, high-frame-rate intraframe codecs and faster ingest, CFexpress Type B can be the right tool. If the camera manual requires a particular VPG class or lists approved media, follow that requirement even when another card advertises a higher peak number.

CFexpress Type B vs UHS-II SD: Quick Comparison

Decision factor	CFexpress Type B	UHS-II SD
Physical slot	CFexpress Type B slot; same general form factor as XQD but compatibility is camera-dependent	Full-size SD slot with a second row of contacts for UHS-II
Interface	PCIe/NVMe-based	SD bus; UHS-II uses an additional contact row
Sustained-video label	CFA VPG profiles when certified and required	Video Speed Class V60 or V90 for 60 or 90 MB/s minimum sequential write under the standard
Best fit	High-data-rate modes, deep bursts, rapid buffer clearing and fast offload	General photography, many 4K modes, some higher-resolution modes and broad reader availability
Main drawback	Higher media/reader cost, more heat and fewer compatible devices	Lower performance ceiling and slower buffer clearing in demanding cameras
Buying rule	Confirm Type B slot plus mode-specific VPG or approved-card requirement	Confirm UHS-II host support plus required V-class

Start With the Camera Slot, Not the Speed Number

A memory card is not a universal performance upgrade. If the camera has only an SD slot, a CFexpress Type B card cannot be inserted. If it has a dedicated CFexpress Type B slot and a separate SD slot, the formats remain physically separate. Some older cameras with XQD hardware can use CFexpress Type B after a firmware update, but that is a model-specific capability rather than a guarantee created by the card's similar shape.

This distinction matters because product searches often mix CFexpress Type A, CFexpress Type B, XQD and UHS-II SD. Type A and Type B are different sizes and are not interchangeable. A Sony hybrid slot that accepts Type A and SD does not mean a Canon or Nikon Type B slot accepts SD. Before comparing brands, open the camera manual and find the section titled recording media, compatible cards or card requirements.

A five-step card decision process prevents expensive compatibility mistakes.Alt text: Five-step flow: read the camera manual, choose a recording mode, check sustained write, validate the card, and plan the second slot.

How the Two Formats Differ

Interface, speed ceiling and the meaning of sustained write

CFexpress Type B is built around a PCIe/NVMe connection and has much more interface headroom than UHS-II SD. That difference can shorten the time a camera needs to empty a burst buffer and can support recording modes whose continuous data rate exceeds what an SD card and host can maintain. It can also shorten offloads when the card, reader, computer port and destination drive are all fast enough.

UHS-II SD uses a second row of contacts and remains backward compatible with many UHS-I hosts, although it falls back to the host's lower bus mode. For video, the relevant symbols are V60 and V90. The SD Association defines these as minimum sequential write classes of 60 MB/s and 90 MB/s under the applicable standard conditions. They are not the same as a card's advertised maximum read or burst write speed.

CFexpress uses a different framework. The CompactFlash Association's Video Performance Guarantee profiles certify minimum sustained write performance for media bearing the corresponding VPG logo. A camera can require a specific VPG profile to unlock or reliably run a mode. A non-certified card may work in modes that do not require VPG, but a peak benchmark is not a substitute for a certification explicitly required by the camera.

Physical durability and heat

A CFexpress Type B card has a more substantial shell and can move much more data, but higher throughput also creates heat. Temperature, controller behavior and the camera's thermal environment can change sustained performance during long recordings. SD cards are thinner, easy to carry and widely readable, but their exposed contacts and narrow shell deserve careful handling. For either format, avoid removing the card while the activity light is on, format in the camera after verified backups, and keep used and blank media physically separated.

Match the Card to RAW Burst Photography

For still photography, the card rarely changes the camera's first-frame image quality. It changes how long the camera can sustain a burst, how quickly the buffer becomes available again and how soon images can be reviewed or transferred. A high-resolution RAW file may be tens of megabytes or more, so a 20- or 30-frame-per-second burst can create a large, short-lived write demand even when the average session volume is modest.

CFexpress Type B is most useful when the camera is capable of deep, high-frame-rate RAW bursts and the photographer routinely reaches the buffer limit. UHS-II SD can still be entirely adequate for portraits, landscapes, product work, controlled studio shooting and shorter bursts. Buying the fastest possible card for a camera that writes slowly does not create a faster camera; the host controller remains the ceiling.

A reproducible buffer-clearing test

Do not copy a buffer number from a different camera, firmware or file setting. Measure your own workflow with a repeatable method:

1. Update the camera firmware, charge the battery, disable network transfer and use the same lens and exposure settings for every run.
2. Format each card in the camera, then select the exact file type and drive mode you use in practice, such as lossless-compressed RAW at the camera's maximum mechanical or electronic burst rate.
3. Hold the shutter until the burst rate visibly slows or the camera reaches its stated buffer limit. Record the shot count and the time from shutter release until the card-access indicator turns off.
4. Repeat at least three times after allowing the card and camera to return to a similar temperature. Report the median, not the best run.
5. Test each card capacity separately. Controllers and NAND layouts can change with capacity even inside one product family.

The useful result is not simply 'CFexpress won.' It is whether the time saved changes the assignment. A sports shooter locked out for 20 seconds may benefit materially; a landscape photographer taking one frame every few minutes probably will not.

Match the Card to 4K, 6K and 8K Recording

Resolution is only one variable. Codec, compression ratio, bit depth, chroma sampling, frame rate and whether the camera records RAW or proxy files determine the actual stream. A compressed 8K mode can require less write bandwidth than a high-frame-rate 4K RAW mode. That is why '4K card' and '8K card' are incomplete buying categories.

Convert Mbps to MB/s, then add headroom

Camera menus and manuals often show megabits per second (Mbps), while cards are usually described in megabytes per second (MB/s). Divide the bitrate by eight. A 400 Mbps codec produces a mathematical stream of 50 MB/s. For planning, a reasonable operational heuristic is to add roughly 20–30% headroom for file-system overhead, variability and aging; this is a planning margin, not a standards certification. At 400 Mbps, that points to about 60–65 MB/s, which makes V60 borderline on pure arithmetic and V90 the more comfortable SD choice if the camera supports it. The manual still overrides the calculation.

Bitrate conversion shows why Mbps and MB/s must not be compared as if they were the same unit.Alt text: Chart converting 100, 400, 600 and 1200 megabits per second into megabytes per second with 25 percent planning headroom.

Nominal codec bitrate	Raw stream	Planning target (about +25%)	What to check
100 Mbps	12.5 MB/s	16 MB/s	Usually within many modern SD classes; follow the manual
400 Mbps	50 MB/s	63 MB/s	V60 may be close; V90 gives more margin when approved
600 Mbps	75 MB/s	94 MB/s	V90 is near the planning target; check the camera's exact list
1,200 Mbps	150 MB/s	188 MB/s	Beyond V90's guaranteed minimum; CFexpress or approved media may be required

These rows are examples of unit conversion, not claims that every camera behaves identically. Some cameras impose card-type rules that are stricter than the stream bitrate, and variable-bit-rate codecs can peak above their nominal rate. Others require certified media to protect against sustained-write collapse as the card fills or warms.

Do Not Confuse Peak Speed With a Recording Guarantee

Peak read speed is mainly useful for offload. Peak write speed can describe a short benchmark under favorable conditions. Video recording depends on the lowest continuous write behavior the camera can rely on. An SD card marked V90 provides a standards-based minimum class; a CFexpress card bearing a valid VPG logo provides the corresponding CFA guarantee. If neither a V-class nor the required VPG certification is present, a large maximum number alone does not answer the recording question.

Publication note for product claimsThe Digiera LCB100 product specification lists capacity-specific test figures of up to 1,600 MB/s read and 1,200 MB/s write for 256GB, and up to 1,600 MB/s read and 1,500 MB/s write for 512GB. These are not described on the page as a VPG-certified sustained minimum. Verify the camera's requirements before presenting the card as suitable for a VPG-gated mode.

Dual-Slot Workflows: Backup, Overflow and Proxy Recording

A dual-slot camera does not necessarily write the same workload to both cards. Depending on the model, the second slot may be configured for simultaneous backup, overflow, RAW/JPEG separation, stills/video separation or proxy recording. Each choice changes the bottleneck.

• Simultaneous backup: the slower card or slot may limit burst depth, clear time or the recording modes available for redundant capture.
• Overflow: the second card matters only after the first fills, but the format change can alter performance mid-assignment.
• RAW + JPEG split: CFexpress can take RAW bursts while SD receives smaller JPEG files, reducing pressure on the SD slot.
• Main + proxy video: the camera may allow a high-data-rate master on CFexpress and a lighter proxy on SD, but the exact combinations are model-specific.
• Stills + video split: useful for organization, provided both cards meet the modes assigned to them.

For paid work, test the exact dual-slot setting. A camera that records a demanding mode to CFexpress alone may disable it when identical backup is requested to SD. That behavior is not a card defect; it is a throughput and firmware rule.

A pre-shoot card check should include recording, playback, offload and verified backup.Alt text: Digiera LCB100 CFexpress Type B and LSU100 UHS-II V60 cards on a photographer's desk beside a camera and laptop.

Compare Cost Per Usable Recording Hour, Not Cost Per Card

Capacity and speed should be priced against the mode you will actually use. To estimate recording time, divide usable capacity in megabits by the codec bitrate. A quick field estimate treats 1 GB as roughly 8,000 megabits; formatting and file-system overhead mean the real result will be lower. At 400 Mbps, 256GB yields a theoretical 85 minutes before overhead. At 1,200 Mbps, the same capacity falls to about 28 minutes. Camera displays and tested recording times are better than the estimate for final planning.

CFexpress can cost more per card but save time after the shoot if a suitable reader and destination SSD sustain the transfer. UHS-II SD can be easier to share across cameras and laptops, but a UHS-I reader will erase much of the offload advantage. Include the reader, fast computer port, destination drive, spare media and backup time in the real workflow cost.

Buyers building a mixed kit can compare the broader Digiera memory and storage catalog, but the purchase should still be anchored to the camera's approved media and the production's recovery plan.

How to Test a Card Before a Paid Shoot

A new card should earn trust before it holds irreplaceable footage. The following process is designed for working creators and does not require a laboratory:

1. Confirm the seller, packaging, serial or traceability information and stated capacity. Counterfeit or reprogrammed media can pass a short copy test and fail later.
2. Use a full-capacity verification tool on a computer where practical. A quick benchmark checks speed; a full write-and-read verification checks whether the advertised capacity is real.
3. Format in the target camera, not only on the computer. Record the camera model, firmware, card capacity and format date.
4. Run the most demanding mode you genuinely plan to use for longer than a normal clip. Watch for recording stops, warnings, corrupted playback or unusual heat.
5. Run the burst test and repeat after the card is partly full. Some media behaves differently when empty, warm or near capacity.
6. Play representative clips in-camera, then offload them with the production reader. Verify file counts and hashes or use backup software with verification.
7. Keep at least two copies on separate devices before formatting the card. A memory card is capture media, not a long-term backup strategy.

Which Digiera Card Fits Each Workflow?

Digiera's camera memory card range includes CFexpress Type B and UHS-II SD options. The useful comparison is not which model has the largest headline number, but which one matches the host, sustained-write class and capacity requirement.

Model	Verified page details	Natural fit	Important boundary
LCB100 CFexpress Type B	256GB/512GB; capacity-specific test figures up to 1,600 MB/s read and 1,200–1,500 MB/s write; exFAT	Type B cameras, large bursts, high-throughput modes and faster ingest	No VPG certification is stated on the product page; check any VPG-gated camera mode
LSU200 UHS-II V90 SD	32GB–512GB; Class 10, U3, V90; UHS-II	Cameras that specify UHS-II V90 for demanding SD-based video or faster burst clearing	Use the capacity and camera manual to confirm compatibility; V90 is a 90 MB/s minimum class, not the same as peak speed
LSU100 UHS-II V60 SD	128GB–1TB; Class 10, U3, V60; UHS-II; capacity-specific tested write figures listed on page	Longer recording capacity, stills and modes approved for V60	Not the correct choice when the manual requires V90 or a higher sustained-write medium

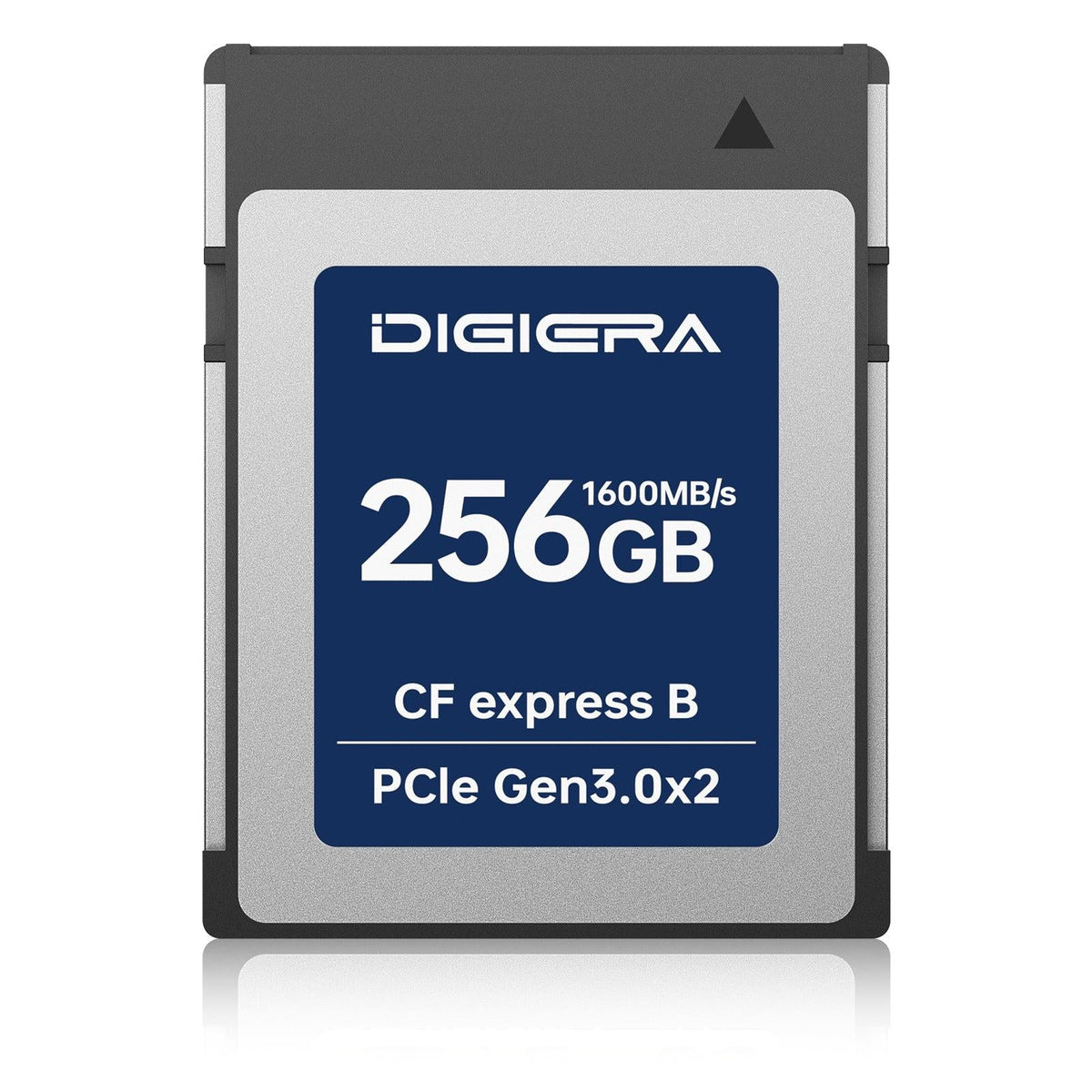

Digiera LCB100 CFexpress Type B, shown in the official product image.Alt text: Official Digiera LCB100 256GB CFexpress Type B product image.

The LCB100 CFexpress Type B card is the relevant Digiera option when the camera has a Type B slot and the required recording mode does not depend on an unstated certification. The published 256GB and 512GB test figures are useful for positioning, but a production team should still validate sustained behavior in its exact camera, firmware and reader chain.

Digiera LSU200 UHS-II SD card carries U3 and V90 markings.Alt text: Official Digiera LSU200 32GB UHS-II V90 SD card and retail package.

LSU200 is the more direct SD choice when the manual calls for V90. Its advantage over a V60 card is not that every photo becomes faster; it is the higher minimum sequential-write class and the additional margin it can provide in demanding SD recording modes. A UHS-II camera and reader are required to obtain UHS-II transfer behavior.

Digiera LSU100 UHS-II SD card is available in V60 configurations and higher capacities.Alt text: Official Digiera LSU100 512GB UHS-II V60 SD card and retail package.

LSU100 targets creators whose approved modes fit V60 and who value capacities up to 1TB. It can be a more rational choice than V90 when the camera never requires 90 MB/s sustained write. Conversely, it should not be substituted for V90 simply because a short benchmark looks fast enough.

Final Decision

Buy CFexpress Type B when your camera accepts Type B and your assignments depend on modes, bursts or turnaround times that exceed the practical limits of UHS-II SD. Buy UHS-II V90 when the camera uses SD and specifies V90 for the selected codec or when you want more write margin and faster clearing than V60. Buy UHS-II V60 when the manual approves it and your priority is capacity and value rather than the highest SD write class.

The most defensible purchase is the least expensive card that is physically compatible, explicitly approved for the exact mode, verified at full capacity and tested in your own production chain. That rule is less exciting than buying the biggest number on the package, but it is far more likely to protect a shoot.

Frequently Asked Questions

Is CFexpress Type B faster than UHS-II SD?

In interface terms, yes: CFexpress Type B has a substantially higher throughput ceiling than UHS-II SD and often clears camera buffers and offloads files faster. The practical gain depends on the camera's own write controller, the card's sustained behavior, the reader, the computer port and the destination drive. A fast CFexpress card cannot make a camera write beyond its host limit, and it does not improve image quality. The speed difference matters most for long high-frame-rate RAW bursts, high-data-rate video modes and time-sensitive ingest. For ordinary stills or moderate compressed video, UHS-II may deliver the same finished image and a more economical workflow.

Do I need CFexpress for 4K video?

Not necessarily. Many cameras record 4K to UHS-I or UHS-II SD because the codec bitrate remains within the card class the manual specifies. Other 4K modes, especially RAW, intraframe, high-frame-rate or very high-bitrate variants, may require CFexpress. Do not decide from the 4K label alone. Find the exact mode in the camera's card-requirements table, note its bitrate and any required V-class or VPG profile, and follow that rule. If the camera offers both formats, CFexpress may still reduce offload time even when SD can record the mode.

Is a V90 SD card enough for 8K?

Sometimes, but 8K by itself is not a sufficient specification. A compressed 8K stream may fit within V90's minimum sequential-write class, while 8K RAW or a high-frame-rate mode may require much more bandwidth or a different card format. Divide the stated bitrate by eight to estimate MB/s, add reasonable operating headroom and then check the camera manual. If the manual requires CFexpress or a certified VPG profile, V90 is not an alternative. If it explicitly approves V90 for that 8K mode, use a genuine V90 card and validate a long recording before important work.

Can I use an SD card in a CFexpress Type B slot?

Normally, no. A dedicated CFexpress Type B slot and a full-size SD slot are physically and electrically different. Some cameras use hybrid slots for CFexpress Type A and SD, which creates confusion, but that does not apply to Type B. A dual-slot camera may place a Type B slot next to a UHS-II SD slot; each card goes only into its matching slot. Never force a card or adapter into a camera. Check the slot diagram in the manual because product names such as Type A, Type B, XQD, CFast and SD describe different media families.

Is CFexpress Type B compatible with XQD?

The formats share a similar physical form, and a number of cameras originally designed for XQD gained CFexpress Type B support through firmware. Compatibility is not universal in either direction. The camera maker must provide firmware and list CFexpress support, and a device or reader that accepts one format may not support the other. Before replacing XQD media, check the exact camera model, firmware version and approved-card list. If support is confirmed, test recording, playback and transfer; do not assume that physical insertion proves full compatibility.

Why does my camera stop recording even with a fast card?

The advertised peak speed may not represent minimum sustained write performance. The card may also be using a slower host mode, overheating, nearly full, counterfeit, fragmented, incompatible with the selected codec or missing a VPG certification required by the camera. The camera itself can stop for thermal or file-system reasons. Start by checking the manual's card table, formatting in-camera after backup, trying the approved capacity, updating firmware and recording the same mode with a known-good card. A short computer benchmark is useful, but it does not reproduce every camera workload.

Should I buy one large card or several smaller cards?

Several cards reduce the amount of work exposed to a single loss or failure and make it easier to rotate verified media during long assignments. One large card reduces swaps, keeps long-form recording continuous and may offer better capacity-specific performance in some product families. The best answer depends on the shoot. For events, use enough cards to avoid reformatting until two backups exist. For uninterrupted interviews or performances, favor capacity but keep a second tested card ready. Label every card, track usage, and never treat the card still inside the camera as the only copy.
