Regular USB sticks are built for moving files now and then. Put one in a factory machine or use it as an always on boot drive, and it can fail within months. An industrial USB flash drive is made for that work, with SLC or pSLC NAND, wear leveling tuned for constant use and a −40°C to 85°C rating.
The other big difference is a fixed bill of materials. The parts inside stay the same for years. Here's what that means, and how to pick the right drive.
What Makes a USB Flash Drive Industrial?
From the outside it looks like any other stick. The differences are inside: higher grade NAND, firmware built for steady writes, testing across heat, cold, shock and vibration, and a housing made to take abuse.
Buyers often ask whether a USB drive exists that's built for 24/7 use, the way NAS hard drives are. That's basically what an industrial drive is. Retail sticks are tuned for low cost and fast file copies, and many have only basic wear leveling, so they wear out quickly when something writes to them all day.
Where Industrial USB Drives Are Used
You'll find them anywhere a failed drive means a stopped machine or a site visit:
-

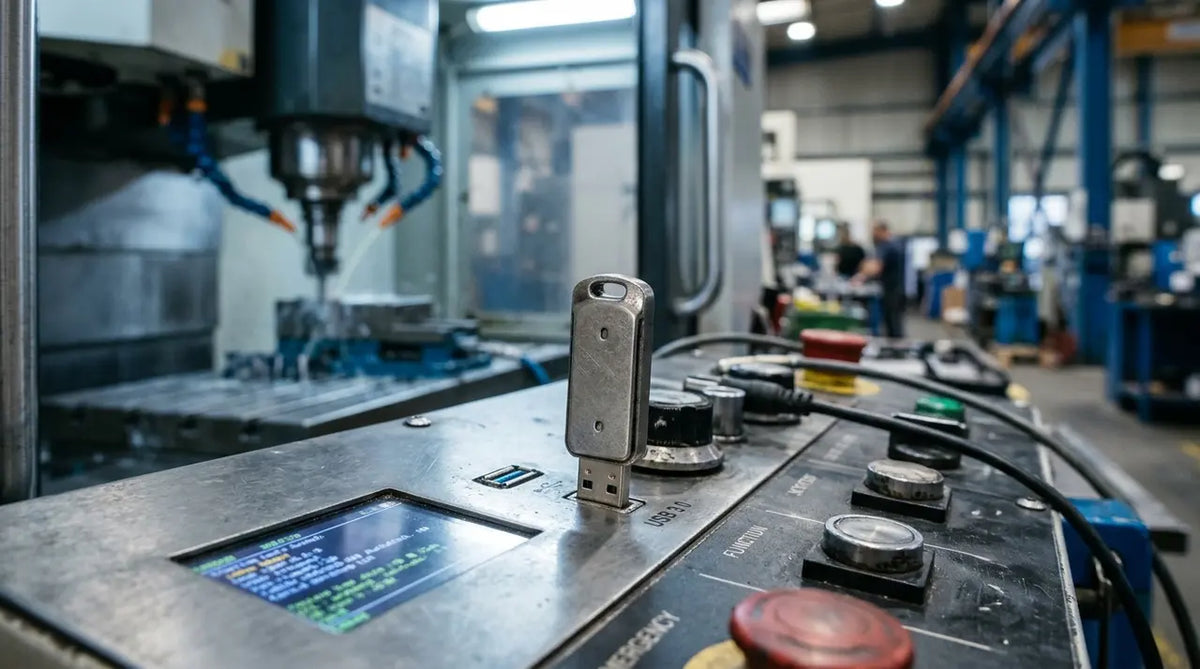

Factory machines. CNC and packaging lines load firmware and job files from USB.
-
Medical devices that log data or install software updates.
-
PLC and HMI panels in plants, water systems and energy sites.
-
Kiosks and digital signage where the drive stores the content or operating system.
-
Test equipment and measurement equipment that store results while in the field.
-
Systems and appliances that boot directly off USB drives.
These USBs are also used by software providers to deliver their installers to customers.
SLC vs pSLC vs MLC vs TLC for USB Drives
|
NAND type
|
Typical P/E cycles
|
Capacity range
|
Cost
|
Best for
|
|
SLC
|
60,000 to 100,000
|
About 1 to 32GB
|
Highest
|
Boot drives, constant logging, long life sites
|
|
pSLC
|
About 20,000 to 30,000
|
Small to mid sizes
|
Medium
|
Most industrial uses, best value
|
|
MLC
|
About 3,000
|
Mid sizes
|
Lower
|
Moderate writes, updates
|
|
3D TLC
|
About 1,000 to 3,000
|
Largest sizes
|
Lowest
|
Read heavy jobs, content delivery
|
The figures above are typical ranges, and each maker rates its own parts. As one real example, a 4GB industrial SLC drive on the market is rated for 234 TBW. That's a lot of writing for such a small drive.
More bits per cell means more capacity for the money, but less margin for error. Studies on flash reliability conducted by Carnegie Mellon University and ETH Zürich indicate that the number of errors grows as the cells age, and the number grows faster for densely packed cells.
Temperature Range and Rugged Build
USB storage devices used in industrial applications have an operating temperature range from −40°C to 85°C. Consumer grade sticks have a much narrower range of temperatures, typically from 0°C to 60°C, and they are not usually tested at operating temperatures.
Build quality counts too. Many industrial drives are tested to MIL-STD-810G for shock and vibration. Some are sealed to IP67 against dust and water. Metal housings and conformal coating on the circuit board add more protection from moisture and dust.
What a Fixed BOM Means and Why It Matters
For OEM buyers, this is often the main reason to pay more. Digiera produces USB flash drives for OEM orders at Digiera's production facility.
1. What Gets Locked
A fixed BOM ties the flash chips, the controller and the firmware revision to one part number. With most industrial suppliers, any change to those parts means a new part number. The drive you tested is the drive you keep getting.
2. PCN and EOL Notices
In the event that there is a need for modification in the part, a Product Change Notice (PCN) will be provided months in advance. The end of life (EOL) notice provides an opportunity to purchase before the inventory gets exhausted.
3. The Real Cost of a Silent Parts Change
Retail sticks can switch NAND or controllers between batches with no warning, and the model name stays the same. In a medical or factory device, that can mean retesting and recertifying the whole product. That bill is usually far bigger than the price of the drives.
USB 2.0 vs USB 3.x for Embedded Hosts
Faster isn't always better here. Plenty of older machines only work with USB 2.0, small capacities and FAT32, and retail brands are dropping those options. In most cases, USB 3.x drives can be used in USB 2.0 ports, but they consume more energy and heat up at maximum speed.
So pick for the host, not the speed on the box. Check what the machine supports, and test a sample before you order in volume.
Features to Check Before You Buy
-
A hardware write protect switch, so nothing on the drive can be changed or infected by accident.
-
Health monitoring through SMART, which shows how much life is left.
-
Power loss protection, to keep data safe if power drops mid write.
-
eUSB versions that plug into a header on the board instead of a port.
-
Serialization and content loading, for shipping software to customers.
-
Encryption, if the drive will hold patient or business data.
-
Counterfeit checks. Bulk orders from unknown sellers can contain fake capacity or recycled NAND, so test samples with a full write and read.
Using a USB Drive as a 24/7 Boot Drive
Boot drives fail most often because of logs, not booting. An operating system that writes its logs and scratch files to the stick wears it out fast. Move those to other storage or a RAM disk, and the stick only gets written when you update the system.
Mirroring two boot devices helps a host stay up when one fails. That only works if someone gets an alert, though, so set up failure notices. For heavy write duty, a SATADOM or M.2 boot drive is a better fit, and VMware's boot device guidance recommends moving new hosts away from USB and SD card boot.
Ordering industrial drives for a product? Send your capacity, NAND type and temperature needs and request a quote from Digiera.
FAQs
What is the difference between an industrial and a regular USB flash drive?
Industrial drives use SLC or pSLC NAND and are tested from −40°C to 85°C. They also come with a fixed bill of materials, so parts don't change between batches. Regular sticks use cheaper TLC or QLC NAND and are made for occasional file transfers.
Are SLC USB flash drives worth it?
Definitely, but only if the device is used frequently and will be used for a long time. An SLC can undergo up to 100 thousand write operations, which is much more than TLC. When it comes to reading operations, pSLC or MLC are preferable.
What temperature can an industrial USB drive handle?
It usually operates between −40°C and 85°C. Consumer USB drives operate within a smaller range of temperatures, which can be something like 0°C to 60°C. Make sure to look out for operating temperature.
What does fixed BOM mean for USB flash drives?
It implies that the flash memory, controller and firmware of the device are tied to the specific part number. Whenever there is any change in them, the supplier changes the part number and sends out the change notice.
Can you use a USB flash drive as a boot drive 24/7?
Yes, but use an industrial SLC or pSLC drive and keep logs off it. Retail sticks often fail within months in this role. For servers, VMware now recommends moving away from USB boot toward SATADOM or M.2 drives.
Do USB flash drives have wear leveling?
Most do, but on cheap retail sticks it's often basic. Industrial drives use more advanced wear leveling that spreads writes across all blocks and keeps spare blocks for failures. That's a big part of why they last longer.
How long does an industrial USB flash drive last?
It depends on the NAND type and how much you write. An SLC drive rated for 234 TBW, such as a typical 4GB industrial model, can last many years under steady writing. Under light, read heavy use, most industrial drives outlast the machines they sit in.
Do industrial USB drives have write protection?
Some do, via the help of a switch mechanism found within the housing of the device. This will make sure that whatever is inside the USB drive will remain untouched once the switch is turned on.
