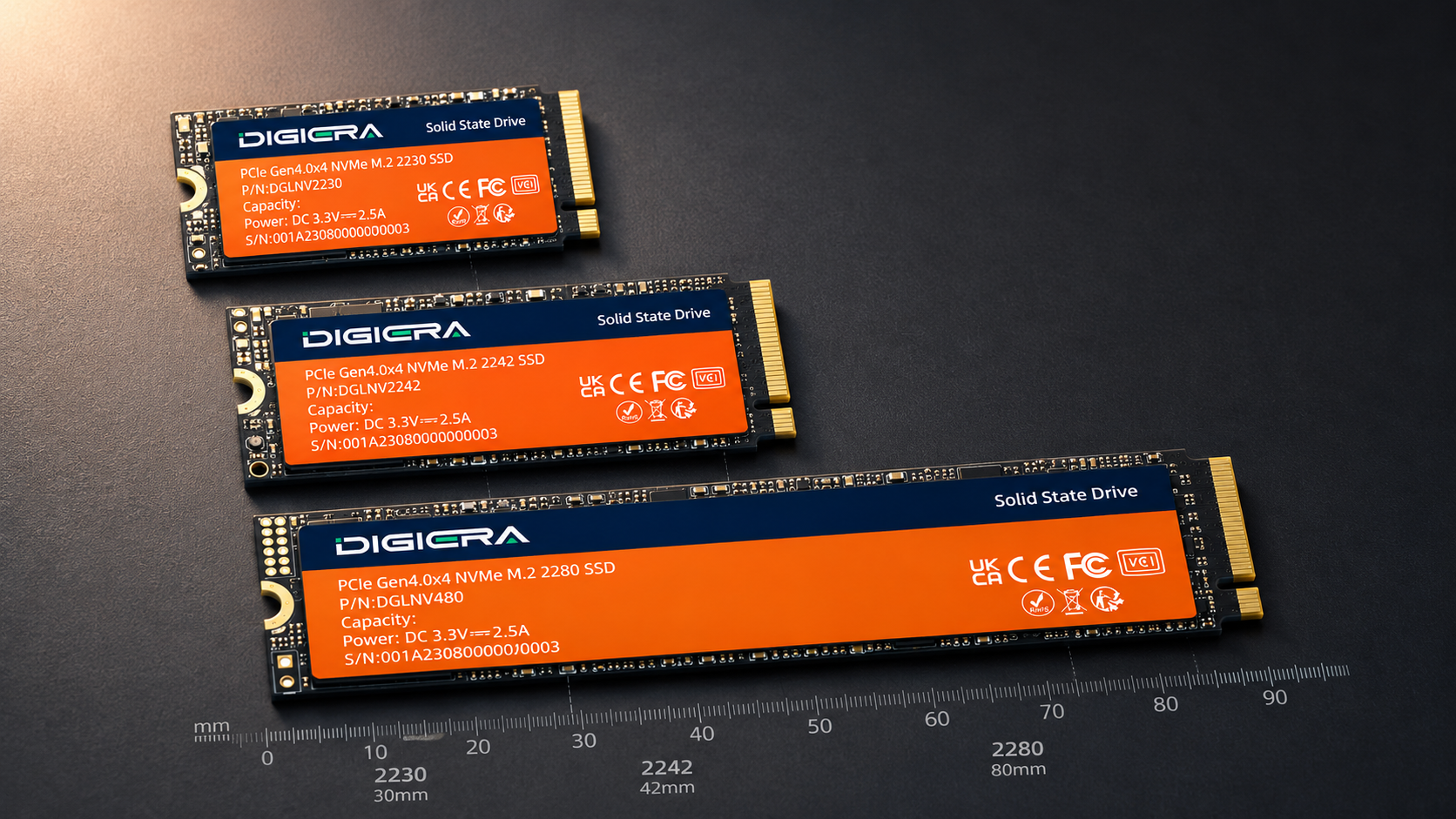

M.2 SSD Sizes Explained: 2230, 2242, 2280 and Which One Fits Your Laptop or Handheld

Aug 22 2026

The M.2 size code describes the module's physical dimensions, not its speed. A 2230 SSD is 22mm wide and 30mm long; a 2280 SSD is 22mm wide and 80mm long. Many desktops and full-size laptops use 2280, while compact devices may require 2230 or 2242. The correct answer is always the size documented for the exact device and mounting point.

Before buying, confirm four separate items: supported length, SATA or PCIe/NVMe protocol, connector keying, and available clearance above and below the module. A drive can fit the socket mechanically and still be electrically incompatible or too thick for the enclosure.

Start with the manufacturer's specification sheet or service manual. Use the size chart below to interpret the code, then verify the slot rather than assuming that a shorter or longer module can be adapted safely.

Bottom line up frontDecode the size first, then verify the slot. 2280 is common in desktops and many laptops; 2230 is common in selected handhelds and compact systems; 2242 and 2260 appear in specific devices. The system manual must confirm length, protocol, keying, thickness, mounting point, and thermal requirements.

M.2 SSD Sizes Explained: Quick Answer

The common storage-focused M.2 sizes covered here are 2230, 2242, 2260, 2280, and 22110. The first two digits are the nominal width in millimetres; the remaining digits are the length. Length determines physical fit, while protocol, lanes, controller, NAND, firmware, and cooling determine compatibility and performance.

Desktop or standard laptop: often 2280

M.2 2280 has the broadest consumer selection and is common on desktop motherboards and many laptops. It is still not universal: thin systems, tablets, and some business laptops use shorter modules or soldered storage. Confirm the documented size and the retaining-screw position for the exact model.

Handheld or compact device: often 2230

Valve documents a socketed 2230 module in Steam Deck models, and ASUS specifies 2230 for the original ROG Ally. Other handheld generations can use 2280 instead. Product-family names are not precise enough, so check the complete model name before ordering.

The compatibility check that matters beyond length

Confirm whether the slot supports SATA, PCIe/NVMe, or both, and check the key notch, PCIe generation, module thickness, and required thermal parts. A correct length does not guarantee that the firmware will detect the drive.

What Do the M.2 Size Numbers Actually Mean?

The whole naming system is four or five digits describing a rectangle, and it only ever claims to tell you one thing.

Width, length, and the storage-module convention

For the common SSD modules in this guide, the nominal width is 22mm. Kingston's M.2 SSD FAQ lists 2230, 2242, 2260, 2280, and 22110 as common dimensions. Similar-looking M.2 modules can serve Wi-Fi, cellular, or other functions, so dimensions alone do not identify the device type.

Why length changes fit but does not set speed

The far end of the module must align with a supported standoff or retaining point. A longer board can provide more component area, but it is not automatically faster. Two 2280 SSDs can use different protocols, PCIe generations, controllers, NAND, firmware, and thermal designs, producing very different results.

M.2 SSD Size Chart: 2230, 2242, 2260, 2280 and 22110

Use the chart as a decoding guide, not as compatibility approval. Some systems provide several mounting positions; others provide only one. The 22110 form factor is primarily associated with servers, storage appliances, and selected workstations and should be considered only when the system documentation explicitly supports it.

M.2 size	Dimensions	Where you find it	What trips buyers up
2230	22mm x 30mm	Gaming handhelds, tablets, some Surface models, compact laptops	Fewer models on shelves, and many devices demand single-sided
2242	22mm x 42mm	Older ThinkPads, small business laptops, mini PCs, industrial boards	Plenty of 2242 drives and slots are SATA, not NVMe
2260	22mm x 60mm	A handful of older laptops and embedded systems	Thin replacement market, often a fixed standoff
2280	22mm x 80mm	Most desktops, most laptops, workstations, PS5 expansion	Heatsink height and double-sided thickness
22110	22mm x 110mm	Servers, storage appliances, some workstations	Needs a long slot, so a 2280 laptop slot cannot hold one

M.2 2230: Handhelds, Tablets and Thin Laptops

The 30mm board reduces the space required for storage in tightly packed devices. That benefit comes with a smaller retail selection and stricter requirements for thickness, thermal shields, and component placement.

What actually uses it

Valve's Steam Deck technical specifications identify a socketed 2230 M.2 module and note that it is not intended for end-user replacement. Microsoft publishes device-specific Surface service guides for models with removable SSDs, and those procedures should take priority over generic upgrade videos.

The single-sided and thickness check

Single-sided and double-sided modules can differ in overall thickness, and compact devices may have little clearance beneath the SSD. Confirm the exact module-height requirement and reuse any manufacturer-specified shield, sleeve, spacer, or thermal pad. Do not force the cover closed over a module that does not sit flat.

Capacity availability changes by model and revision. Check the exact SKU, NAND layout, endurance rating, and warranty rather than assuming that every 2230 capacity has the same thickness or sustained performance.

M.2 2242 and 2260: The In-Between Sizes

The 42mm and 60mm lengths have a smaller consumer retail selection than 2280. They appear in selected laptops, mini PCs, embedded systems, and industrial hardware, but the supported protocol and mounting position vary by device.

Where 2242 and 2260 appear

Some business laptops and compact systems use 2242, while 2260 appears in selected older or specialized designs. Do not infer SATA or NVMe from length: both the slot wiring and the drive protocol must match. A module that seats correctly can remain invisible in firmware when the protocol is wrong.

M.2 2280: The Mainstream Laptop and Desktop Size

Eighty millimetres is where the industry settled, and the reasons behind that are practical rather than arbitrary.

Why 2280 has the widest selection

The 80mm format gives manufacturers more component area and is widely supported by consumer motherboards and laptops. Digiera's current internal SSD collection includes M.2 2280 NVMe and SATA models as well as 2.5-inch SATA options. Capacities, interfaces, availability, and performance claims should be checked on the exact product page.

A PCIe 4.0 2280 drive can be a balanced choice when the host supports Gen 4 and the workload benefits from NVMe throughput. A Digiera LNV480 PCIe 4.0 M.2 2280 model should be evaluated against the host's lane configuration, cooling, capacity requirement, published endurance, and current warranty. A faster-generation label alone does not guarantee a noticeable benefit in every workload.

Heatsinks and double-sided clearance

Desktop boards may include a removable M.2 heat spreader, while laptops often provide much less vertical clearance. Check whether the system requires a bare module, a supplied thermal pad, or a specific heatsink height. A tall aftermarket heatsink can prevent a laptop cover from closing or interfere with nearby components.

Which M.2 SSD Size Fits Your Laptop?

Use the exact model's specification sheet or service manual. The presence of an M.2 socket does not mean that every M.2 length, key, or protocol is supported.

Start with the full model number

Write down the full model number including any regional or configuration suffix, then find the specification sheet or service manual on the manufacturer's own support page. What you are looking for is a complete phrase like 'M.2 2280 PCIe NVMe' or 'M.2 2242 SATA' rather than a general reassurance. A sheet that only says 'M.2 SSD' has not told you enough to spend money on. Storage layouts change between generations of the same product family, so a guide written for a model that merely looks similar will not do the job.

Check the standoff, thickness, and surrounding parts

Open the machine following the manufacturer's procedure with the power disconnected, and you will often see screw positions marked 2230, 2242, 2260 or 2280 running along the board. A movable standoff gives you a real choice of lengths while a fixed one does not, whatever free space you can see sitting past it. Thin laptops also run tight on clearance underneath the drive, and since the same capacity ships in both single-sided and double-sided layouts across revisions, the datasheet is the only place that settles thickness. Storage slots tend to sit near the battery, the heat pipes or the wireless card, which means a longer drive can be blocked even when the board looks wide open.

Which M.2 SSD Size Fits Your Gaming Handheld?

Handheld layouts have tight mechanical and thermal tolerances, and the correct size can change between generations that share a similar product name.

Steam Deck and ROG Ally compatibility

Valve specifies 2230 for Steam Deck models. ASUS's current ROG Ally SSD upgrade guide states that the original ROG Ally uses 2230, while ROG Ally X, ROG Xbox Ally, and ROG Xbox Ally X use 2280. Follow the exact guide for the exact model, including recovery and reinstall steps.

Microsoft sits in the 2230 camp on the models that allow a swap at all, and only on the models named in its service documentation. Whatever you are opening, back the drive up and prepare the recovery media before anything comes apart, because installing hardware does not reinstall the operating system that used to live on it.

When the internal slot is not the best upgrade path

If opening the device conflicts with warranty, service guidance, or your risk tolerance, supported removable storage may be a simpler capacity expansion. A Digiera LT100 microSD card is one product to compare when the device supports that card class. Load times and install rules can differ from internal NVMe, so check the platform's storage guidance and the card's exact speed ratings.

Adapters can relocate or extend a connection, but they do not create missing chassis clearance or validate thermal and electrical compatibility. Treat an adapter as a device-specific modification, not a universal fit solution.

2230 vs 2242 vs 2280: What Changes Besides Length?

Board length affects component space and how many products you get to choose between, while controller design, NAND type, firmware, lane count and cooling handle everything else.

Capacity and component layout

Longer boards provide more layout area, but modern NAND density allows high capacities in shorter modules as well. Capacity, DRAM use, NAND type, and component count are product-level details; do not infer them from length alone.

Performance: compare exact models

A 2280 drive is not automatically faster than a 2230, since either size can run PCIe 4.0 and the results depend on the controller, the NAND, the firmware and how many lanes the slot actually provides. Peak sequential read is one number out of roughly five that matter. Sustained write once the cache fills, random access, and thermal behaviour during a long install are what separate two products that look identical on the packaging, so compare exact models rather than form factors.

Heat and thermal throttling

An SSD controller may reduce performance when it reaches its thermal limit. Use the device's specified thermal pad, shield, or spreader and confirm that protective films are removed during installation. Compare sustained tests on the same host rather than diagnosing throttling from enclosure temperature alone.

M.2 vs NVMe vs SATA: Size Is Not the Interface

These three terms get treated as alternatives to one another when they are nothing of the kind. M.2 is a physical shape, while NVMe and SATA describe how a drive talks to the computer.

SATA and NVMe describe the data path

SATA SSDs are constrained by the SATA interface, while NVMe is designed for SSDs connected over PCIe. NVM Express defines the NVMe protocol across form factors including M.2. A 2.5-inch SATA SSD and an M.2 SATA SSD can have similar interface limits even though their physical designs differ.

For an older laptop with a SATA-only M.2 slot, an M.2 2280 SATA SSD can be the correct compatibility choice. Confirm the full model specification, capacity, and warranty; do not replace it with NVMe unless the slot explicitly supports PCIe/NVMe.

Connector keying: M, B, and B+M

The notch pattern helps prevent some incompatible insertions, but keying does not prove protocol support. M-key and B+M-key modules can carry different interfaces depending on the product, and the socket must support the drive's electrical protocol. Read both the drive specification and the system manual.

How to Check M.2 Compatibility Before You Buy

Three checks beyond the physical fit, and skipping any one of them is how people end up holding the right length with the wrong drive.

Protocol and key together. Work out whether the slot runs SATA, PCIe NVMe or both, and whether the drive is M-key or B+M-key. Kingston is blunt about the failure mode here, noting that if you connect a PCIe M.2 drive to a SATA-only port the BIOS will most likely never see it at all.
PCIe generation and lane count. A Gen 5 drive will normally run in a Gen 4 or Gen 3 slot at the slower generation's speed, which is fine when the prices sit close together and wasteful when you have paid a premium for bandwidth the board can never supply.
Firmware and platform limits. Check for required BIOS or firmware updates, supported capacities, shared-lane restrictions, and any vendor-specific installation process. Update only through the system manufacturer's documented method.

Which M.2 SSD Capacity Should You Pick?

Start with current used space, add the applications or games you expect to keep installed, and allow room for updates and temporary files. A Digiera CNV300 PCIe 3.0 M.2 2280 NVMe SSD may suit a compatible Gen 3 system, but capacity and performance should be selected from the exact host and workload rather than from a generation badge alone.

Capacity planning ruleChoose capacity from current usage, expected applications or games, and required working space. If storage pressure is recurring, move up a tier; if a large portion remains unused over the life of the system, the extra capacity may not have been necessary. Keep a separate backup regardless of size.

Common M.2 Upgrade Mistakes

The most common compatibility failures are buying the correct length with the wrong protocol, assuming that every M.2 slot is NVMe, or relying on a retailer filter instead of the manufacturer manual. Verify the complete phrase in the documentation, such as 'M.2 2280 PCIe NVMe' or 'M.2 2242 SATA'.

Mechanical mistakes include installing without the correct standoff, overtightening the retaining screw, reusing an unsuitable heatsink, or forcing a module that does not sit flat. Power the system down, follow electrostatic-discharge guidance, and stop if the official procedure or required recovery tools are unclear.

Back up before opening the deviceCloning overwrites the destination drive, and a clean installation requires recovery media and access to encryption recovery keys. Verify the backup and recovery path before removing the original SSD.

Final Verdict: Which M.2 SSD Size Should You Choose?

Confirm the size the device accepts, confirm the interface it supports, and then pick the best model available in that combination, in that order every time.

For many desktops and standard laptops, 2280 provides the widest selection. Steam Deck and original ROG Ally owners should verify 2230 requirements; later Ally models listed by ASUS use 2280. For 2242 or 2260 systems, protocol and mounting documentation are especially important because the retail selection is narrower.

Running an older ThinkPad or a small business laptop? Check whether it wants 2242 and settle SATA versus NVMe before anything else. If your older machine has a SATA-only M.2 slot then an M.2 2280 SATA drive is still a large jump over a mechanical hard drive. Workstations and servers usually take 2280 as well, with 22110 reserved for the cases where the slot and mounting point genuinely exist.

Conclusion

M.2 sizes come down to a single idea, which is that the number is a fit specification and not a performance specification. That gives you 2230 for handhelds and the thinnest machines, 2242 or 2260 for a narrow band of older and compact systems, 2280 for nearly everything else, and 22110 for enterprise hardware you almost certainly do not own. Confirm the length, the protocol, the key, the PCIe generation, the board thickness and the mounting point, and start comparing drives after that rather than before.

Digiera's internal range is relevant after compatibility is established: compare its current 2280 SATA and NVMe listings with the system manual, then verify capacity, warranty, endurance, and thermal requirements on the exact SKU. For external or removable alternatives, the broader Digiera storage range includes portable SSDs and memory cards for compatible devices.

Editorial disclosure: this article explains standards and manufacturer-documented compatibility. It does not claim hands-on testing of every device or Digiera SSD, and manufacturer peak speeds should not be treated as independently measured sustained results.

FAQs

Do M.2 SSDs have different sizes?

Yes. Common storage-focused sizes include 2230, 2242, 2260, 2280, and 22110. The code identifies nominal width and length in millimetres; it does not identify SATA versus NVMe, PCIe generation, capacity, or speed.

Which is better, 2230 or 2280?

Neither is universally better. If the device accepts only 2230, choose a compatible 2230 module. If it supports 2280, that size generally offers a wider product selection. Compare exact models for endurance, sustained performance, power, and warranty.

What is the difference between 2242 and 2280?

Both are nominally 22mm wide, but 2242 is 42mm long and 2280 is 80mm long. The longer board does not automatically mean higher speed. The slot's protocol, mounting point, and clearance still determine compatibility.

What are the disadvantages of a 2230 SSD?

The retail selection can be smaller, price per gigabyte can differ, and compact devices may impose stricter thickness and thermal requirements. Those are market and device constraints, not proof that every 2230 SSD is slower.

How do I know which M.2 SSD to buy?

Use the exact system model and check the manufacturer specification or service manual. Confirm all of the following before comparing prices:

Supported length and retaining-screw position.
SATA or PCIe/NVMe protocol, connector keying, and PCIe generation.
Single- or double-sided clearance, thermal parts, capacity limits, and firmware requirements.

Should I get M.2 or NVMe?

They are not alternatives. M.2 describes the module form factor; NVMe describes a storage protocol over PCIe. If the manual specifies M.2 PCIe NVMe, buy a compatible NVMe module in the supported size. If it specifies M.2 SATA, use SATA.
