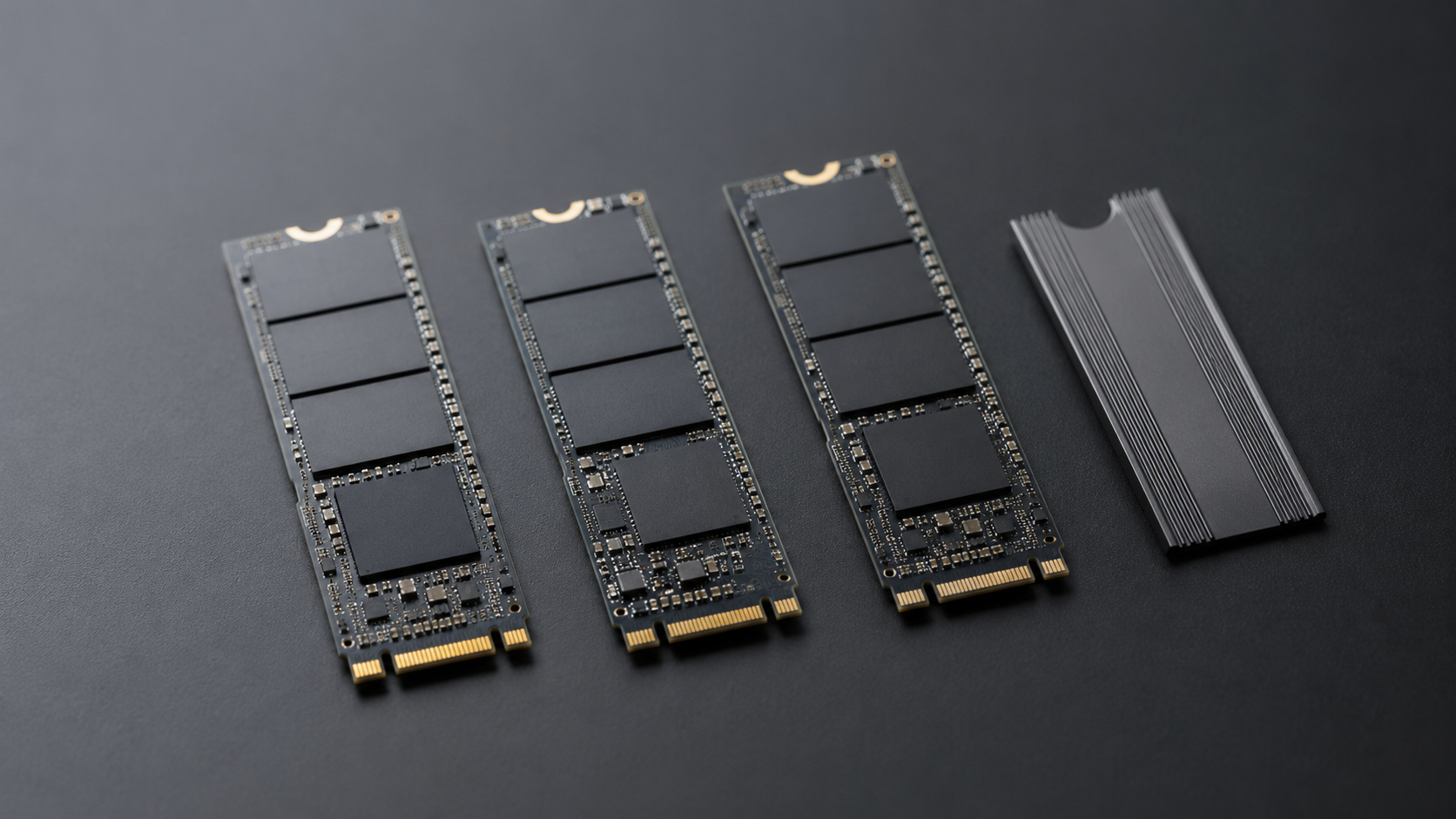

SSD Firmware and Controller Selection for OEM Buyers: What to Ask Before Production

An OEM buyer should approve an SSD configuration, not a controller brand. The configuration must identify the exact controller and silicon revision, NAND vendor and generation, firmware build, DRAM where present, over-provisioning, PCB revision, critical power components, capacity, and approved alternates. If any of those can change without notice, the original qualification does not describe all units sold under the model name.

Start with the host workload and finished-device environment. Then select a controller, NAND, and firmware combination that meets sustained performance, endurance, power, temperature, compatibility, security, and lifecycle requirements. Lock the approved bill of materials and Product Change Notification process before the first production purchase order.

The OEM Short Answer

Buyer question	Evidence an acceptable answer includes
What exactly ships?	Controller part and revision, NAND details, firmware ID, PCB, DRAM, over-provisioning, and alternates
Who owns firmware?	Named engineering owner, base code source, customization scope, version control, and support window
What can change?	Contractual critical-component list and written PCN triggers
What was qualified?	Exact capacity, firmware, host, enclosure, workload, temperature, and sample identity
How is production controlled?	Firmware readback, lot traceability, sampling plan, golden samples, and nonconformance process
How are field bugs fixed?	Validated updater, staged deployment, interruption recovery, rollback policy, and revision verification

Define the Workload Before Selecting Silicon

Translate product use into measurable requirements. A boot drive, creator workstation, thin client, surveillance recorder, industrial logger, and cache device should not share one generic qualification plan.

• Host interface, lane count, and supported protocol revision
• Sequential and random read/write mix at realistic queue depths
• Required minimum sustained throughput after cache exhaustion
• Daily host writes and planned service life
• Capacity and maximum steady-state fill level
• Idle, active, and startup power limits
• Finished-enclosure temperature and airflow
• Boot, sleep, resume, reset, and unexpected-power-loss behavior
• Required telemetry, security, sanitize, and update functions
• Production lifetime and field-support window

Write requirements as pass/fail limits. Fast, industrial grade, and high endurance are not test criteria.

What the Controller and Firmware Control

The controller maps host addresses to NAND, schedules parallel operations, performs error correction, manages bad blocks, distributes wear, handles power states, and presents the storage protocol to the host. Firmware sets much of the observable policy: cache behavior, garbage collection, thermal throttling, error recovery, telemetry calculations, compatibility workarounds, security configuration, and update behavior.

NVMe standardizes host-facing commands and data structures, not the complete internal algorithm. The current NVM Express specification set includes firmware revision reporting, firmware slots, SMART/health information, error logs, sanitize status, and management mechanisms. An implementation can support the command while still differing in limits, optional features, vendor logs, and recovery behavior.

DRAM, DRAM-less, and HMB are design choices

Dedicated DRAM can provide local mapping and metadata space. A DRAM-less design can reduce power, cost, and board area and may use Host Memory Buffer when the host and firmware support it. Neither architecture is automatically good or bad. Test latency consistency, sustained mixed I/O, low-power-state behavior, and operating-system compatibility on the finished drive.

Create an Approved Configuration Record

The approved record should be precise enough for receiving inspection to detect a substitution.

Item	Record at sign-off	Requalify when
Controller	Part number, silicon revision, package, lane/channel configuration	Part or revision changes
NAND	Vendor, generation, cell type, die/package IDs, capacity layout	Vendor, die, package, or generation changes
Firmware	Unique build ID, base version, custom settings, checksum	Any executable or parameter change
DRAM	Part, type, density, approved alternates	Part or density changes
PCB and power	Revision, PMIC, clock, bridge, key passives	Electrical or layout behavior may change
Over-provisioning	Factory setting and usable capacity	Reserved area changes

Do not accept a family-level phrase such as Phison-based, SMI-based, or TLC NAND as the approved BOM. It is not specific enough to reproduce the product.

Controller Selection Questions

Ask for an architecture map tied to every shipping capacity. Channel count alone does not show how many channels or chip enables are populated. Peak PCIe generation does not prove the host can sustain that speed, and a Gen 5 controller can be a poor fit in a thermally constrained Gen 4 product.

Request:

• Exact controller part and revision for each capacity
• Supported NAND list and the specific approved pairing
• DRAM or HMB architecture and validated host matrix
• ECC and end-to-end data-path protection description
• Thermal sensor location, throttle thresholds, and settled performance
• Power-state support, transition latency, and measured platform behavior
• Security and sanitize features enabled in shipping firmware
• Controller lifecycle status and last-buy process

Use supplier data sheets as design inputs. Qualification of the assembled drive remains the buyer's evidence.

Firmware Questions Before Contract Signature

The buyer needs an owner and a controlled binary.

1. Who develops the base firmware and who approves the final production build?
2. What is the unique revision string and cryptographic checksum of the approved image?
3. Which parameters are customized for NAND, power, cache, thermal, telemetry, model strings, or security?
4. How are source changes, parameter changes, and emergency patches reviewed and released?
5. Which test report belongs to this exact build and capacity?
6. How long will fixes, tools, signing infrastructure, and engineering escalation remain available?
7. What happens when a field update is interrupted?
8. Can the buyer verify the active revision on every supported operating system?

Reject firmware described only as latest. Production needs an immutable identifier and a controlled path to any successor.

Lock the BOM and Product Change Notification Process

A locked BOM identifies critical items that cannot change without written approval. The PCN clause defines what the supplier must disclose, how much notice is required, when samples arrive, which qualification tier is triggered, and how remaining inventory is handled.

A useful PCN includes old and new part details, reason for change, affected models and lots, implementation date, expected functional impact, associated firmware change, qualification evidence, sample availability, and last-buy option where relevant.

Tier requalification by risk

If NAND changes, repeat endurance, sustained-write, data-integrity, thermal, and compatibility work appropriate to the new pairing. If firmware changes, emphasize regression, power cycling, sleep/resume, cache behavior, telemetry, security, update safety, and performance. If a critical power or PCB component changes, repeat electrical, enumeration, reset, and thermal tests. Document the tier rather than improvising after a shipment arrives.

Qualification Matrix Before Mass Production

Test area	Minimum evidence	Production blocker
Enumeration and boot	Cold/warm boot across supported BIOS and OS builds	Repeatable missing drive or wrong capacity
Sustained performance	Post-cache rate at realistic fill and temperature	Falls below product requirement
Power management	Idle/active power, sleep/resume, reset, link-state logs	Missing drive, data error, or limit breach
Unexpected power loss	Controlled interruptions at defined write phases	Metadata corruption or undocumented recovery
Data integrity	End-to-end patterns and file hashes through stress	Any reproducible mismatch
Endurance	Workload-based aging with health and error tracking	Requirement not met or telemetry becomes unreliable
Thermal	Final enclosure, ambient range, settled throughput	Unstable oscillation or rate below requirement
Firmware update	Data-present update, interruption, rollback policy	Unrecoverable device or revision ambiguity

Run the matrix on every shipping capacity whose NAND population or cache behavior differs. A high-capacity sample does not automatically qualify the lowest-capacity SKU.

Endurance, Write Amplification, and Data Integrity

JEDEC JESD218 and JESD219 provide endurance requirements and workload frameworks, but the buyer must still map the application to daily writes, service life, capacity, and environmental conditions. Compare TBW only with the capacity and workload assumptions attached.

Where supported, measure internal NAND writes and host writes to estimate write amplification. Vendor-specific counters must be documented and version-controlled if support tools depend on them. During aging, track corrected and uncorrectable errors, percentage used, available spare, media errors, temperature history, retired blocks where exposed, and performance change from the fresh-drive baseline.

Do not translate an endurance pass into a promise that every drive will fail at a particular date. State the test method, sample count, workload, temperature, and acceptance criteria.

Power and Thermal Validation in the Finished Product

An open-bench pass cannot qualify a sealed fanless enclosure. Test the production mechanical stack with real thermal pads, adjacent heat sources, firmware power states, airflow, and orientation.

Record startup peaks separately from average active power. Log controller temperature, available enclosure sensors, throughput, latency, and ambient on one timeline. Throttling is acceptable only if the settled behavior still meets the product requirement and does not produce unstable oscillation or host timeouts.

SMART, Health Logs, and Field Diagnostics

List every standard and vendor-specific value exposed by the shipping firmware. Verify units, update cadence, rollover, reset behavior, sensor location, warning thresholds, and interpretation. Support documentation should explain what a critical warning, media error, percentage-used value, and temperature event mean for that product.

Use the firmware revision read from the drive, not a packaging label, as the software identity. The NVM Express Linux driver information points to nvme-cli for standards-aligned management and log access; Windows or embedded products may use a vendor tool or native management API. The operational requirement is the same: read the active version back and store it with the test or RMA record.

Plan the Field Firmware Update Path

Before launch, validate download, activation, required reset, power interruption, data preservation, rollback or anti-rollback behavior, signed-image rejection, scripting, exit codes, and final revision readback. Run the post-update regression workload with representative user data still present.

If no safe field updater will exist, document that as a product limitation and strengthen pre-production compatibility testing. Do not promise field-fix capability because the controller data sheet mentions firmware slots.

Security and Sanitization

Security requirements should come from the product threat model. Confirm whether the shipping firmware enables self-encrypting-drive functions, which TCG Opal version is implemented, how keys are provisioned, whether update images are authenticated, and how debug access is controlled.

For reuse or disposal, define the required sanitization outcome. NIST SP 800-88 Rev. 2 focuses on a risk-based media-sanitization program and points organizations to applicable standards and controls. A supported NVMe sanitize command is an implementation feature; the organization's policy still determines whether it is appropriate for the data and disposition path.

Production QC, Golden Samples, and Traceability

Production control should verify that units match the approved design. Require incoming component checks, firmware programming plus revision readback, capacity and identity checks, risk-based burn-in or stress, performance sampling, data-integrity checks, serial and lot traceability, nonconformance quarantine, and retention of golden samples with test records.

Digiera's internal SSD manufacturing program describes fixed-BOM options, controller and NAND locking, staged inspection, burn-in, sampling, and traceability. Use that information to frame a supplier audit, then put the exact controls, frequencies, acceptance limits, records, and PCN obligations into the project agreement. Website descriptions are not a substitute for the signed quality plan.

Red Flags That Should Pause the Order

• Controller disclosed only by brand or interface generation
• NAND substitution allowed without written approval
• No unique firmware ID or no readback during production sampling
• Qualification report does not identify capacity, firmware, host, or enclosure
• No PCN timing, sample, or requalification commitment
• Update tool or long-term firmware owner is undefined
• SMART values are undocumented or change between builds
• Production lots cannot be traced to BOM and firmware revision
• Marketing specifications use fresh, empty, cooled samples but omit test conditions

One gap may be resolved with evidence. Several unresolved gaps indicate that price is being quoted without the controls needed to keep the product stable.

Final Sign-Off Checklist

Procurement and engineering should sign the same configuration record, test report, golden-sample identity, quality plan, PCN clause, warranty terms, field-update plan, and escalation path. The best controller is the one that meets the workload inside the finished product and remains traceable through the intended lifecycle.

For mixed portfolios, Digiera's storage catalogue can support internal SSD, portable SSD, memory card, RAM, and flash-storage sourcing. Evaluate each project against the same evidence standard rather than extending one product's validation to another category.

FAQs

What is the most important SSD controller question for an OEM buyer?

Ask for the exact controller part number and silicon revision in every shipping capacity. Then link that identifier to the approved NAND, firmware build, PCB, and qualification report. A controller family or vendor name is not enough.

What should be locked in an OEM SSD BOM?

If a component can change performance, endurance, power, thermals, security, or compatibility, lock it or define approved alternates. That normally includes controller, NAND, firmware, DRAM, over-provisioning, PCB revision, bridge or PMIC, and other critical electrical parts.

How should firmware versions be controlled?

Use a unique revision string and checksum, record the active revision from sampled drives, and tie every report and production lot to that identity. If firmware changes, require release notes, a risk-based regression plan, and approval before implementation.

Is a DRAM-less SSD unsuitable for OEM use?

No. If the workload is light, power and board area matter, and HMB behavior is validated on every supported host, a DRAM-less design can fit. For sustained mixed or random workloads, compare latency consistency and post-cache behavior against a DRAM-equipped option.

What should trigger SSD requalification?

If controller, NAND, firmware, DRAM, PCB, critical power components, over-provisioning, or manufacturing process changes, apply the relevant test tier. A cosmetic or packaging change may need documentation only, but the trigger list should be agreed before production.

How do buyers verify the firmware on production SSDs?

Read the active revision from the drive using an operating-system or vendor tool, store it with serial and lot data, and compare it with the approved record. If the drive reports an unexpected build, quarantine the lot until the difference is explained and requalified.

Sources

1. NVM Express Base Specification, current specification set.
2. JEDEC JESD218, Solid-State Drive Requirements and Endurance Test Method; JEDEC JESD219, Solid-State Drive Endurance Workloads.
3. NIST SP 800-88 Rev. 2, Guidelines for Media Sanitization.
4. Trusted Computing Group, Storage Security Subsystem Class: Opal.
