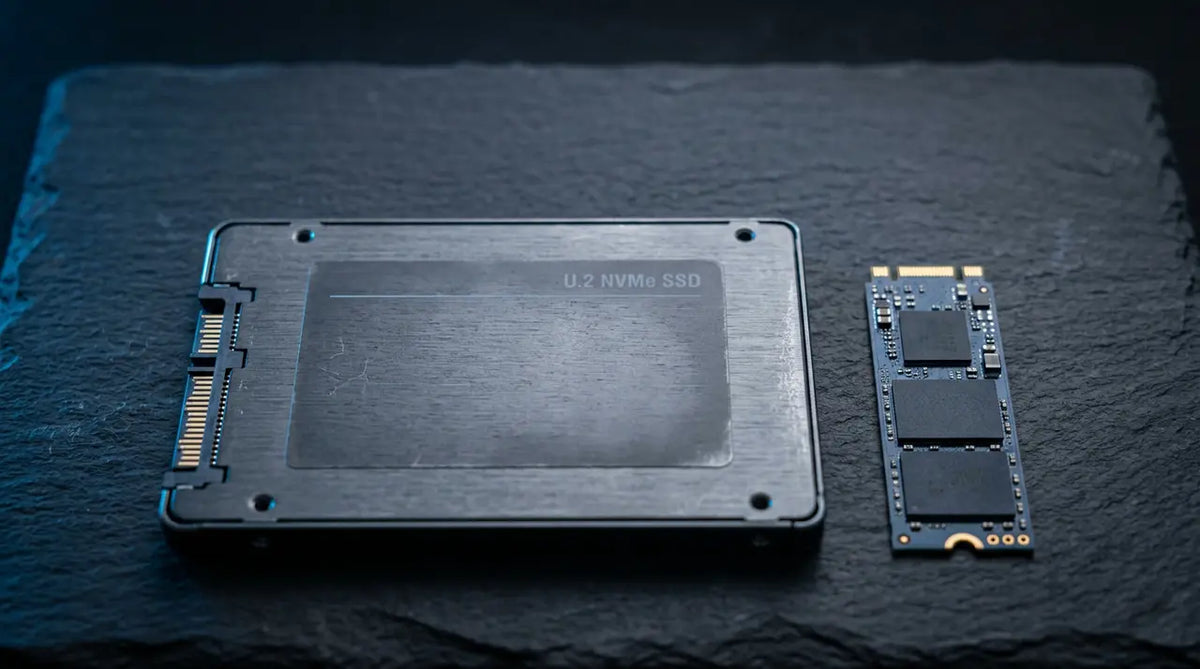

U.2 and M.2 SSDs can both run NVMe over PCIe. At the same PCIe generation, they're about as fast as each other. The real difference is the shape. U.2 is a 2.5 inch drive built for server bays, with hot swap support, more room for flash and better cooling, while M.2 is the small stick that goes inside PCs and laptops.
Here's how they compare, where U.3 and EDSFF come in, and which one makes sense for your build.
What Is a U.2 SSD?
A U.2 SSD looks like a regular 2.5 inch laptop drive, only thicker. It plugs in through the SFF-8639 connector and talks to the system over four PCIe lanes using NVMe. Drives come in 7mm and 15mm heights, according to SNIA's form factor guide, and the thicker ones hold more flash and can support dual port connections.
Many people compare U.2 with SATA SSDs. That's the wrong match. A U.2 drive has much more in common with an M.2 NVMe stick, since both skip the SATA controller and connect straight to PCIe.
U.2 vs M.2 SSD: Key Differences
|
Feature
|
U.2 SSD
|
M.2 SSD
|
|
Shape
|
2.5 inch, 7mm or 15mm thick
|
Small stick, usually 22 x 80mm
|
|
Interface
|
NVMe over PCIe x4 (dual port on some)
|
NVMe over PCIe x4, or SATA
|
|
Max capacity
|
Up to 122.88TB
|
Usually up to 8TB
|
|
Hot swap
|
Yes, with a compatible backplane
|
No
|
|
Cooling
|
Metal case, front bay airflow
|
Small heatsink or none
|
|
Power
|
Several watts idle, more under load
|
Low idle draw
|
|
Power loss protection
|
Standard on enterprise models
|
Rare
|
|
Typical use
|
Servers, storage arrays, workstations
|
PCs, laptops, consoles
|
Capacity is where U.2 pulls far ahead. A 2025 launch put 122.88TB in a single U.2 drive, more than 15 times the size of the largest common M.2 sticks. That kind of density is why storage servers still use the format.
Speed Depends on the PCIe Generation
The shape of a drive doesn't decide its speed. The PCIe generation does. A PCIe 4.0 U.2 drive and a PCIe 4.0 M.2 drive land in the same range, and both get faster with PCIe 5.0.
Some buyers assume U.3 is a newer, faster version of U.2. It isn't. U.3 changes how the drive connects to the backplane, not how fast it runs. Our guide to PCIe 3 vs 4 vs 5 speeds explains what each generation adds.
U.2, U.3 and EDSFF: Where Server Storage Is Heading
Three server form factors share the market in 2026.
1. U.2
U.2 is still the most common NVMe drive in existing servers and storage arrays. Plenty of current systems ship with U.2 bays, so these drives will stay easy to buy for years.
2. U.3 and Tri Mode
U.3 keeps the same connector shape but lets one backplane accept NVMe, SAS and SATA drives. That makes servers simpler to build. U.3 drives usually work in U.2 bays, but U.2 drives don't always work in U.3 only bays, so check the server's manual.
3. EDSFF (E1.S and E3.S)
EDSFF is a newer family of shapes built for density and airflow. SNIA describes the E3 sizes as designed to update and replace the 2.5 inch U.2 format, and E1.S is already common in large cloud servers. Many new server platforms now offer EDSFF bays instead of U.2.
Enterprise Features M.2 Drives Usually Lack
U.2 drives are mostly sold into data centers, so they come with features consumer drives skip:
-
Power loss protection. Capacitors hold enough power to finish writes if the power cuts out.
-
Endurance rated in drive writes per day (DWPD), often 1 to 3 full drive writes every day for five years.
-
Dual port models that connect to two controllers, so storage stays online if one fails.
-
Hot swap, as long as the backplane and operating system support it.
-
Extra spare flash. That's why sizes like 3.84TB and 7.68TB look odd: part of the flash is held back for wear.
-
A metal case that spreads heat across its whole surface.
If you're building a product that needs drives like these, Digiera makes SSDs for OEM projects at Digiera's production facility.
Using a U.2 SSD in a Workstation or Homelab
Most desktop and homelab boards don't have a U.2 port. You'll need an adapter: a PCIe card that holds one drive, a dual card that needs PCIe bifurcation, or an M.2 to U.2 cable. Each option uses up a slot or lanes, and loose cables can make mounting messy.
Plan for heat and power too. A U.2 disk consumes many watts even at idle, which is much more than what M.2 sticks consume.
Used enterprise U.2 drives are popular with homelab builders. Retired data center drives are cheap per TB and built for heavy writing. The catch is unknown wear and usually no warranty, so read the SMART data for percentage used and power on hours before you trust one, and check SSD wear and warning signs as it ages.
Which One Fits Your Build?
-
Servers and storage arrays: U.2 for existing bays, EDSFF for new platforms.
-
Workstations with heavy daily writes do well with U.2 on an adapter card.
-
A homelab NAS cache can use a used enterprise U.2 drive, once you've checked its wear.
-
Gaming PCs and everyday desktops are better off with M.2. It's simpler, cooler and cheaper.
-
Laptops only take M.2.
Sourcing Enterprise SSDs for OEM Projects
For a product line, the form factor is only one part of the spec. Lock the controller, NAND and firmware on the bill of materials too, so the drives you qualify are the drives you keep receiving. Send your capacity, form factor and endurance needs, and request an SSD quote from Digiera.
FAQs
Is U.2 faster than M.2?
Not by itself. Both run NVMe over PCIe, so speed depends on the PCIe generation and the drive's controller. U.2 drives hold their speed better under long, heavy loads, thanks to better cooling and more spare flash.
Can I use a U.2 SSD in a desktop PC?
Yes, using an adapter. Either a PCIe card or M.2 to U.2 adapter will work in most cases. Make sure you allow proper air flow to the device because it can become hot due to higher power consumption.
What is the difference between U.2 and U.3?
U.3 keeps the same connector shape but lets one backplane accept NVMe, SAS and SATA drives. It isn't faster. U.3 drives usually work in U.2 bays, but check the server manual before mixing them.
Are U.2 drives hot swappable?
Yes, when the server's backplane and operating system support it. You can pull and replace a drive without shutting down. Desktop adapter cards usually don't support hot swap.
Are used enterprise U.2 SSDs worth buying?
They can be, for homelab use. They're cheap per TB and built for heavy writing. First check the SMART wear percentage and power-on hours because most pre-owned hard drives do not have warranties.
Why do enterprise SSDs come in sizes like 3.84TB?
Some of the memory is reserved as spare capacity. The drive uses it to replace worn blocks and keep write speeds steady. That's why enterprise sizes look smaller than the consumer 4TB.
Do U.2 SSDs use more power than M.2?
Usually, yes. U.2 drives can draw several watts at idle and much more under load. M.2 drives idle at a fraction of that, which matters in laptops and small builds.
Is U.2 being replaced by EDSFF?
Slowly. Many new servers offer EDSFF bays, and SNIA designed the E3 sizes to replace U.2. U.2 is still common in existing servers, so it will stay available for years.
